IP Rating refers to the ingress protection (IP) of the "object."
This could be a portable printer, a smartphone, or a terminal.
The IP Rating does not refer to the product's robustness, but rather its resistance to harsh environments and the ingress of dust and water.
The first digit refers to the dust resistance level, the second digit refers to the water resistance level.
Below are the tables for these values:
In addition of IP Grade protection in some case it is used to have a MIL-STD certification (for Printers and Terminals it i the MIL-STD 810)

The MIL-STD-810 test series originally addressed generic laboratory environmental testing.
The first edition of MIL-STD-810 in 1962 included only a single sentence allowing users to modify tests to reflect environmental conditions.
Subsequent editions contained essentially the same phrase, but did not elaborate on the subject until MIL-STD-810D was issued marking one of the more significant revisions of the standard with its focus more on shock and vibration tests that closely mirrored real-world operating environments.
MIL-STD-810F further defined test methods while continuing the concept of creating test chambers that simulate conditions likely to be encountered during a product's useful life rather than simply replicating the actual environments. More recently, MIL-STD-810G implements Test Method 527 calling for the use of multiple vibration exciters to perform multi-axis shaking that simultaneously excites all test article resonances and simulates real-world vibrations.
This approach replaces the legacy approach of three distinct tests, that is, shaking a load first in its x axis, then its y axis, and finally in its z axis.

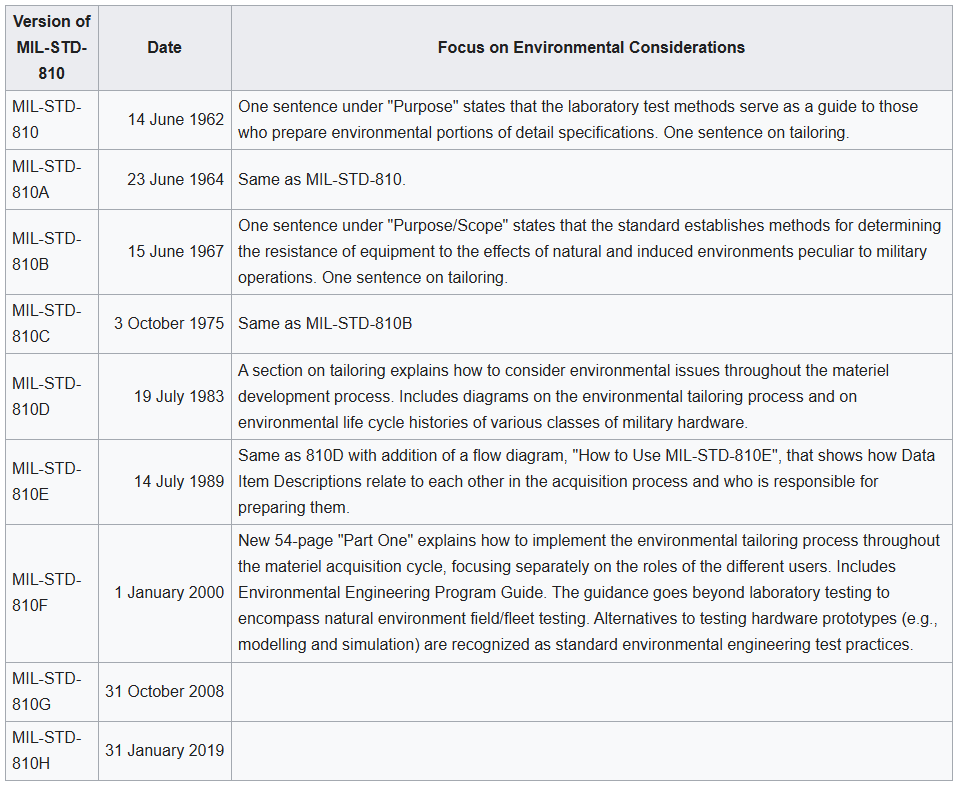

The following table traces the specification's evolution in terms of environmental tailoring to meet a specific user's needs.

For a complete information about MIL-STD you can refer to this LINK. [WIKIPEDIA]
